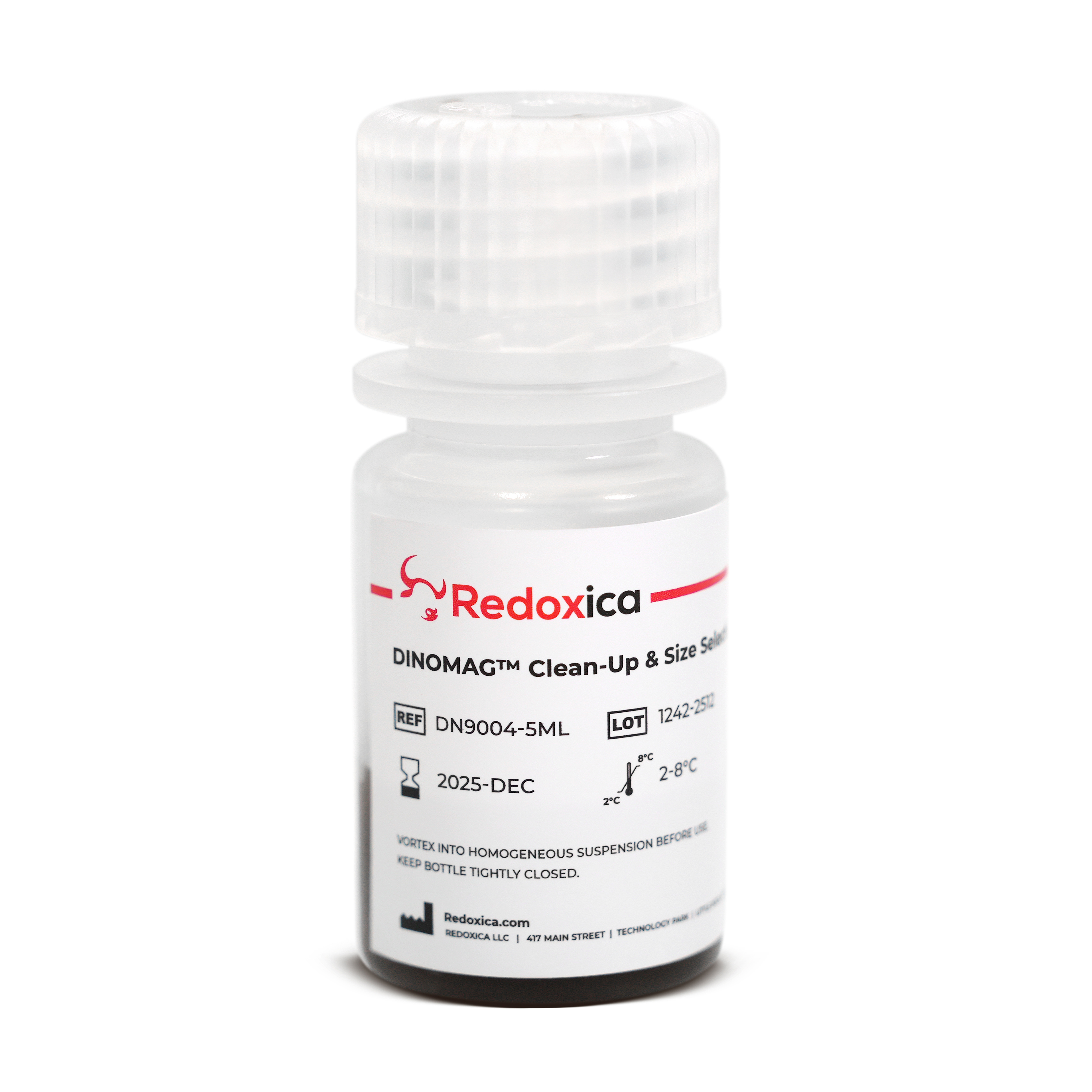

DINOMAG™ Clean-Up & Size Selection SPRI Magnetic Beads

Genomics

DNA Extraction & Purification

PCR Purification, DNA Clean-Up, DNA Size Selection, NGS Clean-Up, NGS Prep, PCR Clean-Up, qPCR, ddPCR, PCR, Post-PCR Clean-Up,Post-Enzymatic Reaction Clean-Up, DNA Cloning, Restriction Enzyme Digestion, Adapter Ligations, Microarrays, Sequencing, Fragment Analysis, Genotyping

For Research Use Only (RUO). Not intended or validated for use in the diagnosis of disease or other conditions.

CAREFULLY READ ALL INSTRUCTIONS BEFORE PERFORMING ANY PROCEDURE. FOLLOW MANUFACTURER’S RECOMMENDATIONS AND PRODUCT LABELING. MATERIAL SAFETY DATA SHEET FOR THIS PRODUCT IS AVAILABLE UPON REQUEST. THE INFECTIOUS POTENTIAL OF LIQUID WASTE RESULTING FROM THE USE OF THIS PRODUCT HAS NOT BEEN TESTED. ALTHOUGH CONTAMINATION OF WASTE WITH RESIDUAL INFECTIOUS MATERIAL IS UNLIKELY, COMPLETE EXCLUSION CANNOT BE GUARANTEED. THEREFORE, LIQUID WASTE SHOULD BE HANDLED AS POTENTIALLY INFECTIOUS AND DISCARDED ACCORDING TO LOCAL SAFETY REGULATIONS. REDOXICA AND ITS AFFILIATES MAKE NO WARRANTIES OF ANY KIND EXPRESS OR IMPLIED WITH RESPECT TO THE METHOD, INCLUDING BUT NOT LIMITED TO WARRANTIES OF SUITABILITY FOR A PARTICULAR PURPOSE OR MERCHANTABILITY OR THAT THE METHOD IS NON-INFRINGING. ALL OTHER WARRANTIES ARE EXPRESSLY DISCLAIMED. YOUR USE OF THE METHOD IS SOLELY AT YOUR OWN RISK, WITHOUT RECOURSE TO REDOXICA OR ITS AFFILIATES.

Liquid

8

Single Tubes, 96-well, 384-well

Manufactured in ISO 9001:2015 certified facility.

Brown, Liquid (Suspension)

PCR products, fragmented DNA

DNA

Sodium Azide (<0.1%), CAS Number: 26628-22-8

20µL and 200µL multichannel pipettes, 96-well PCR plates, 384-well PCR plates, magnetic separator

Odorless

Yes

Yes

Polystyrene Core

Magnetite

Carboxyl Molecules

The entire preparation process, depending on the chosen protocol, takes approximately 20-30 minutes with minimal hands-on time required.

SPRI paramagnetic bead-based technology - Each SPRI bead, with a size of 1 µm ± 8%, features a buoyant polystyrene core surrounded by a thin layer of magnetite, making it paramagnetic and easily controllable using a magnetic field. Carboxyl molecules coating the surface of SPRI beads provide the necessary charge groups for DNA binding. As an essential component of SPRI reagents, these beads offer robust support for nucleic acid binding. The effectiveness of SPRI beads in their function is enhanced by two key features of our genomic reagents: 1. A crowding agent expels nucleic acids of a specific size from the solution. 2. A binding buffer supplies salt ions and adjusts pH, facilitating the binding of nucleic acid and beads.

1.8x for Clean-Up

Recovery for DNA within the range of 100 – 1000 bp typically ranges from 70-90%

Manual or automated liquid handling systems.
