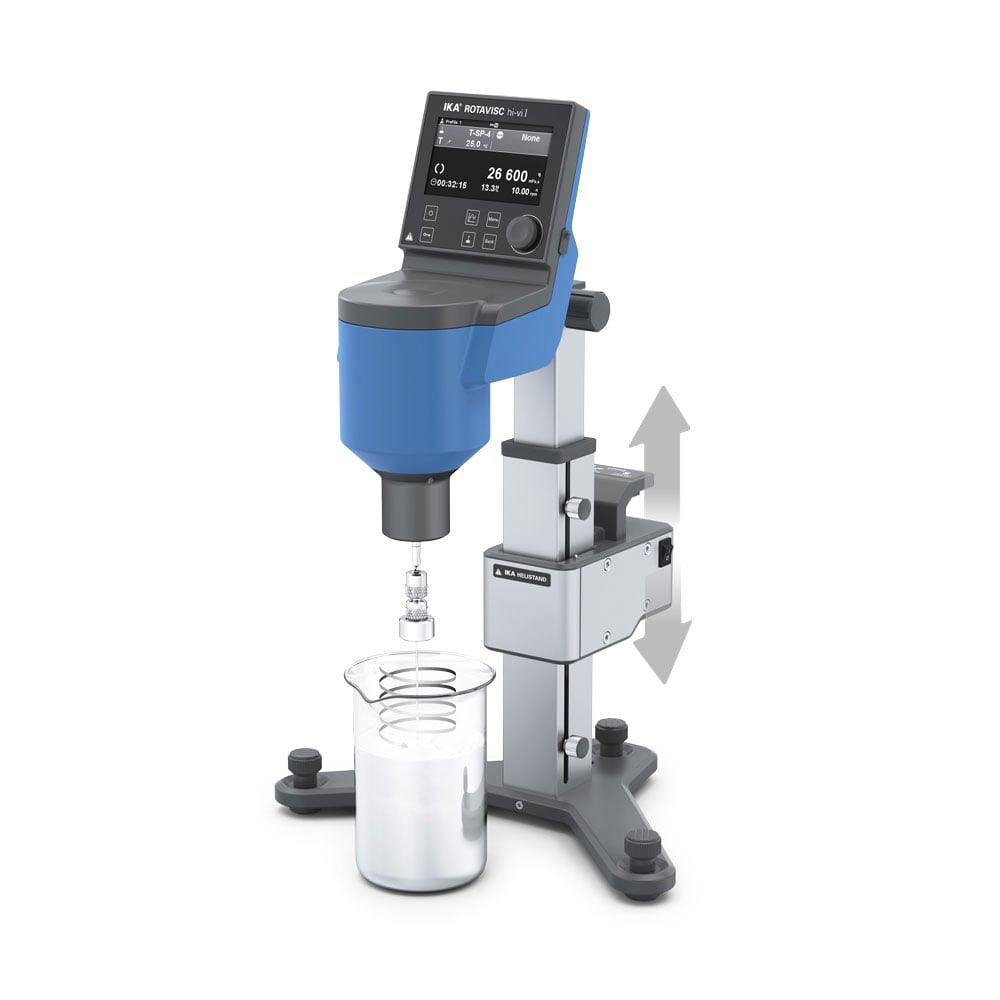

Regardless of a simple or demanding viscosity measurement - IKA ROTAVISC hi-vi I HELI Complete determines the viscosity of highly viscous liquids in all areas of application ranging from the laboratory to quality control.
The scope of delivery includes a standard spindle set (SP 7-SP 12), a protective bracket, temperature sensor and HELISTAND stand incl. T-spindle set.
Easy to operate
The generous 4.3″ TFT display allows for an intuitive menu guidance. A digital spirit level also supports the correct set-up of the start-up condition. The simple ramp function simplifies repetitive tasks.
Highest...
Regardless of a simple or demanding viscosity measurement - IKA ROTAVISC hi-vi I HELI Complete determines the viscosity of highly viscous liquids in all areas of application ranging from the laboratory to quality control.
The scope of delivery includes a standard spindle set (SP 7-SP 12), a protective bracket, temperature sensor and HELISTAND stand incl. T-spindle set.
Easy to operate
The generous 4.3″ TFT display allows for an intuitive menu guidance. A digital spirit level also supports the correct set-up of the start-up condition. The simple ramp function simplifies repetitive tasks.
Highest...
Shipping & Handling
Shipped In
Room Temperature
Safety & Storage
Storage Temperature
Ambient
Safety Statement
For laboratory research and development purposes only.
Regulatory & Compliance
Specifications
COUNTRY OF ORIGIN
Germany
*USAGE / SAFETY STATEMENT
For laboratory research and development purposes only.
WARRANTY
2+8
WORKING TEMPERATURE
-100 - 300 °C
DIMENSIONS (W X H X D)
351 x 629 x 372 mm
DIRECTION OF ROTATION
right
PLUG-IN COUPLING (Ø)
12 mm
MEASURING SPINDLE SERIES
SP set-2
CONNECTION FOR EXT. TEMPERATURE SENSOR
PT 100
TOUCH FUNCTION
yes
VISCOSITY MEASURING RANGE
80000000 mPas
DC VOLTAGE
24 V=
VISCOSITY REPEATIBILITY (FSR)
0.2 %
TIMER DISPLAY
TFT
DYNAMIC LOAD
3.2 kg
STROKE MAX.
61 mm
SPEED ADJUSTMENT
TFT
CALIBRATION OPTION
yes
OPERATING MODE
timer and continuous operation
WORKING TEMPERATURE DISPLAY
TFT
MOTOR RATING OUTPUT
4.8 W
TIME SETTING RANGE
0.017 - 6000 min
WEIGHT
7.1 kg
VOLTAGE.1
100 - 240 V
CURRENT CONSUMPTION
1000 mA
DIAMETER.1
16 mm
PERMISSIBLE AMBIENT TEMPERATURE
5 - 40 °C
FREQUENCY.1
50/60 Hz
SPEED RANGE.1
0.01 - 200 rpm
TELESCOPE STAND STROKE
142 mm
PEMITTED DENSITY
9999 kg/dm3
STAND
HELISTAND
PERMISSIBLE RELATIVE HUMIDITY
80 %
DISPLAY
TFT
POWER INPUT STANDBY
0.06 W
TEMPERATURE MEASUREMENT RESOLUTION
0.1 K
FASTENING ON STAND
extension arm
OVERLOAD PROTECTION
yes
SETTING ACCURACY SPEED
±0.01 rpm
RS 232 INTERFACE
yes
GUARD RAIL
me-vi
TORQUE DISPLAY
yes
VISCOSITY ACCURACY (FSR)
1 %
SPRING TORQUE
1.4374 mNm
BASIC CONTAINER VOLUME
600 ml
TIMER
yes
SUPPORT ROD DIAMETER (WITH INTEGRATED FASTENING ON STAND)
16 mm
POWER INPUT
24 W
USB INTERFACE
yes
SPEED DISPLAY
TFT
GRAPH FUNCTION
yes
PROTECTION CLASS ACCORDING TO DIN EN 60529
IP 40
TORQUE MEASUREMENT
yes
