Specifications
CLASS

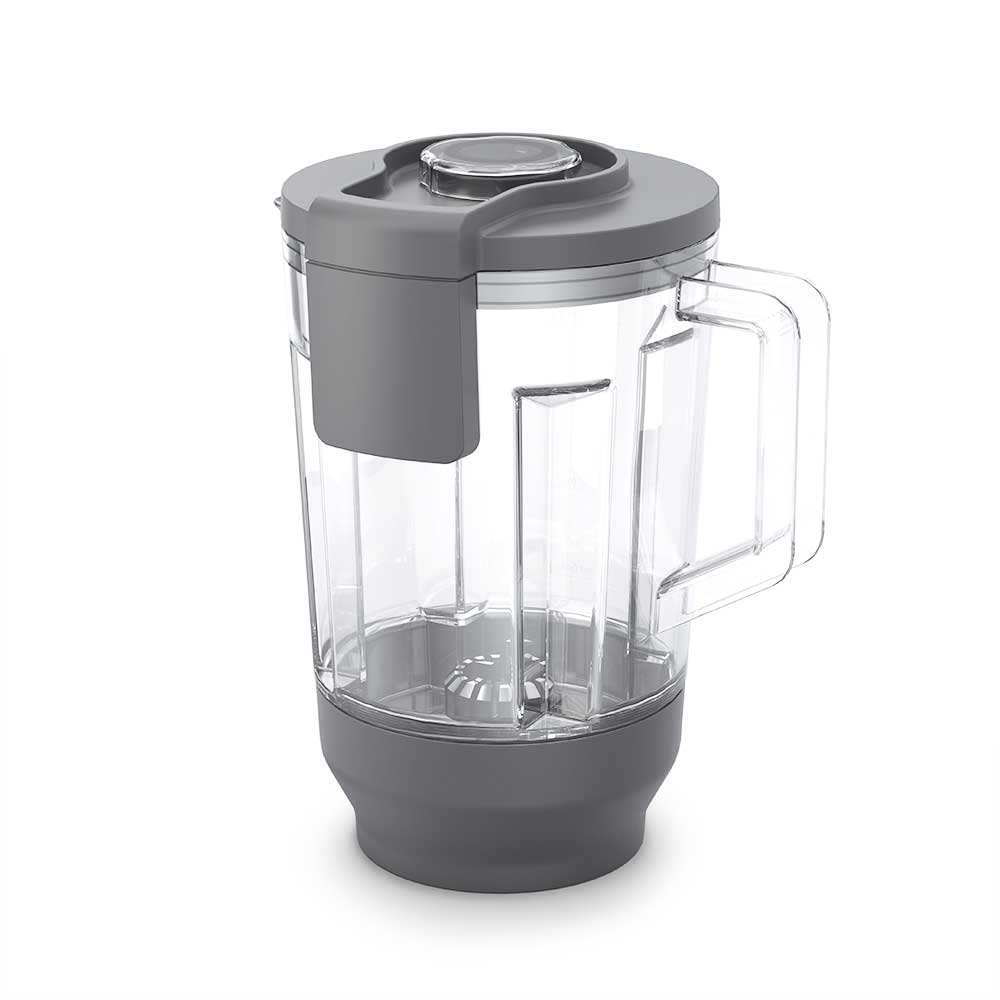

MultiDrive-Blender Accessories
*USAGE / SAFETY STATEMENT
For laboratory research and development purposes only.
DIMENSIONS (W X H X D)
180 x 280 x 220 mm
ULTIMATE FINENESS, SUSPENSIONS
40 - 100 µm
ULTIMATE FINENESS, EMULSIONS
10 - 30 µm
CIRCUMFERENTIAL SPEED MAX.
22 m/s
DATA TRANSFER DRIVE/VESSEL
Wireless with RFID
PERMISSIBLE AMBIENT TEMPERATURE
5 - 40 °C
ACCURACY OF TEMPERATURE MEASUREMENT
±1 K
SPEED RANGE.1
3000 - 15000 rpm
TEMPERATURE LIMIT MIN.
-50 °C
TEMPERATURE LIMIT MAX.
80 °C
GAP BETWEEN ROTOR AND STATOR
0.5 mm
MATERIAL (OTHER)
stainless-steel, PCTG, PTFE, silicone, SIC
PERMISSIBLE RELATIVE HUMIDITY
80 %
OPERATING PRINCIPLE
dispersing
TEMPERATURE MEASUREMENT RESOLUTION
0.1 K
FEED GRAIN SIZE MAX.
10 mm
MATERIAL BEATER/CUTTER
stainless steel 1.4404
MONITORING MAINTAIN TIME
yes
USEABLE VOLUME MAX.
2000 ml
