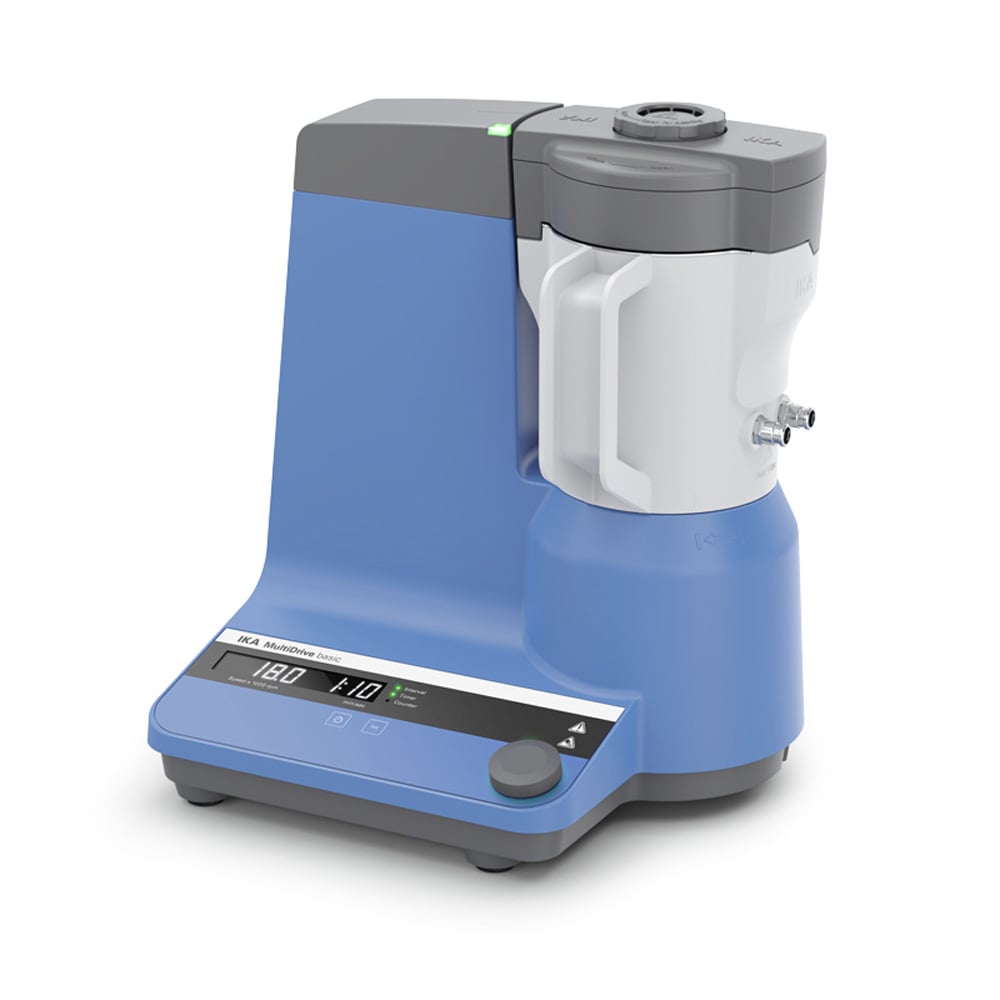

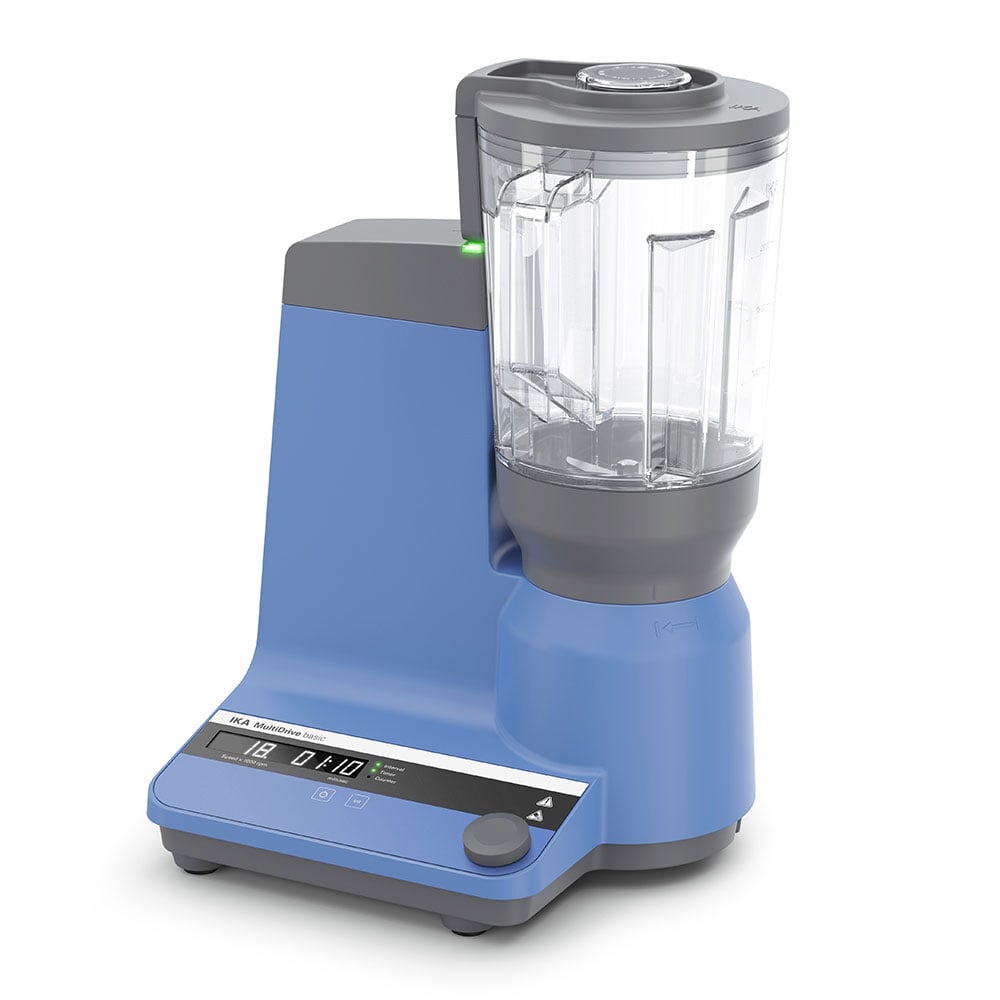

Regardless of whether samples are hard, soft or fibrous – the IKA MultiDrive crusher can perform a wide range of crushing tasks involving coarse and fine crushing, thanks to the variety of vessels available (vessels not included in delivery). With the MultiDrive basic it is possible to mix or grind. There is a USB interface available for easy actuation and documentation respectively. In combination with the milling chamber MI 250 MultiDrive basic replaces your M 20 mill.
High performance
Excellent crushing performance is guaranteed by a combination of
variable rotational speeds, ranging from...
Regardless of whether samples are hard, soft or fibrous – the IKA MultiDrive crusher can perform a wide range of crushing tasks involving coarse and fine crushing, thanks to the variety of vessels available (vessels not included in delivery). With the MultiDrive basic it is possible to mix or grind. There is a USB interface available for easy actuation and documentation respectively. In combination with the milling chamber MI 250 MultiDrive basic replaces your M 20 mill.
High performance
Excellent crushing performance is guaranteed by a combination of
variable rotational speeds, ranging from...
Shipping & Handling
Shipped In
Room Temperature
Safety & Storage
Storage Temperature
Ambient
Safety Statement
For laboratory research and development purposes only.
Regulatory & Compliance
Specifications
CLASS
MultiDrive-Blender
COUNTRY OF ORIGIN
Germany
*USAGE / SAFETY STATEMENT
For laboratory research and development purposes only.
WARRANTY
2+1
DIMENSIONS (W X H X D)
300 x 350 x 250 mm
POWER-OFF TIME
10 min
SPEED DEVIATION
±5 %
MOTOR RATING INPUT
1000 W
MOTOR PRINCIPLE
Brushless DC
MOTOR RATING OUTPUT
800 W
WEIGHT
8.5 kg
VOLTAGE.1
220 - 240 V
PERMISSIBLE AMBIENT TEMPERATURE
5 - 40 °C
FREQUENCY.1
50/60 Hz
SPEED RANGE.1
3000 - 20000 rpm
PERMISSIBLE RELATIVE HUMIDITY
80 %
OPERATING PRINCIPLE
cutting/impact/blending/dispersing
DISPLAY
7 segment LED
POWER-ON TIME
5 min
PROCESS TYPE
batch
VESSELS DETECTION
yes
POWER INPUT
1000 W
USB INTERFACE
yes
PROTECTION CLASS ACCORDING TO DIN EN 60529
IP 31
