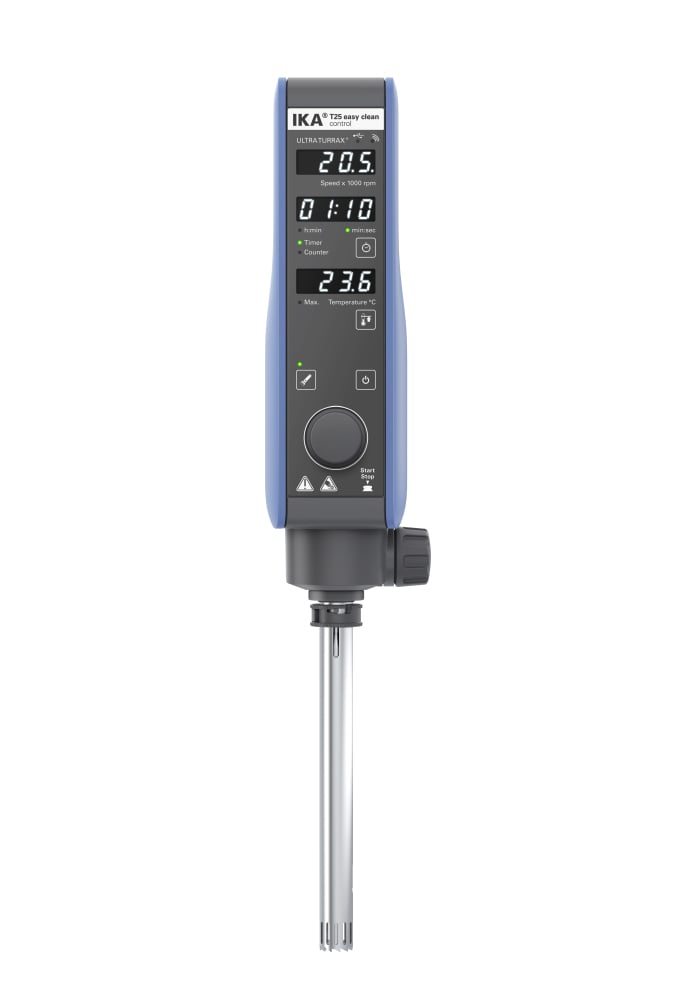

The T 25 easy clean control is a high-performance dispersing instrument with electronic speed control from 3,000 - 25,000 rpm for working volumes of 1 - 2,000 ml (H2O). The new tool S 25 EC-T-C-18G-ST allows temperature measurement and operation time detection through RFID. Device overheating is prevented by continuous temperature monitoring and the setting of temperature limits. The detection of operation time serves to guarantee regular maintenance.
All S 25 tools are compatible with T 25 easy clean control.
Key features in overview
Continuous temperature measurement with S 25 EC-T-C-18G-ST...
The T 25 easy clean control is a high-performance dispersing instrument with electronic speed control from 3,000 - 25,000 rpm for working volumes of 1 - 2,000 ml (H2O). The new tool S 25 EC-T-C-18G-ST allows temperature measurement and operation time detection through RFID. Device overheating is prevented by continuous temperature monitoring and the setting of temperature limits. The detection of operation time serves to guarantee regular maintenance.
All S 25 tools are compatible with T 25 easy clean control.
Key features in overview
Continuous temperature measurement with S 25 EC-T-C-18G-ST...
Shipping & Handling
Shipped In
Room Temperature
Safety & Storage
Storage Temperature
Ambient
Safety Statement
For laboratory research and development purposes only.
Regulatory & Compliance
Specifications
CLASS
Homogenizer/Disperser Drives
COUNTRY OF ORIGIN
Germany
*USAGE / SAFETY STATEMENT
For laboratory research and development purposes only.
WARRANTY
2+1
DIMENSIONS (W X H X D)
89 x 270 x 161 mm
SPEED DEVIATION
2 %
MOTOR RATING INPUT
500 W
PERMISSIBLE ON TIME
100 %
EXTENSION ARM LENGTH
160 mm
TIMER DISPLAY
LED
EXTENSION ARM DIAMETER
13 mm
TEMPERATURE DISPLAY
yes
VOLUME RANGE (H2O)
0.001 - 2 l
MOTOR PRINCIPLE
Brushless DC
SPEED ADJUSTMENT
stepless
MOTOR RATING OUTPUT
400 W
WEIGHT
3 kg
VOLTAGE.1
220 - 240 V
PERMISSIBLE AMBIENT TEMPERATURE
5 - 40 °C
FREQUENCY.1
50/60 Hz
ACCURACY OF TEMPERATURE MEASUREMENT
±1 K
SPEED RANGE.1
3000 - 25000 rpm
NOISE WITHOUT ELEMENT
70 dB(A)
PERMISSIBLE RELATIVE HUMIDITY
80 %
TEMPERATURE MEASURING RANGE
0 - 125 °C
TEMPERATURE MEASUREMENT RESOLUTION
0.1 K
PROCESS TYPE
batch
TIMER
yes
VISCOSITY MAX.
5000 mPas
POWER INPUT
500 W
USB INTERFACE
yes
SPEED DISPLAY
LED
PROTECTION CLASS ACCORDING TO DIN EN 60529
IP 30
