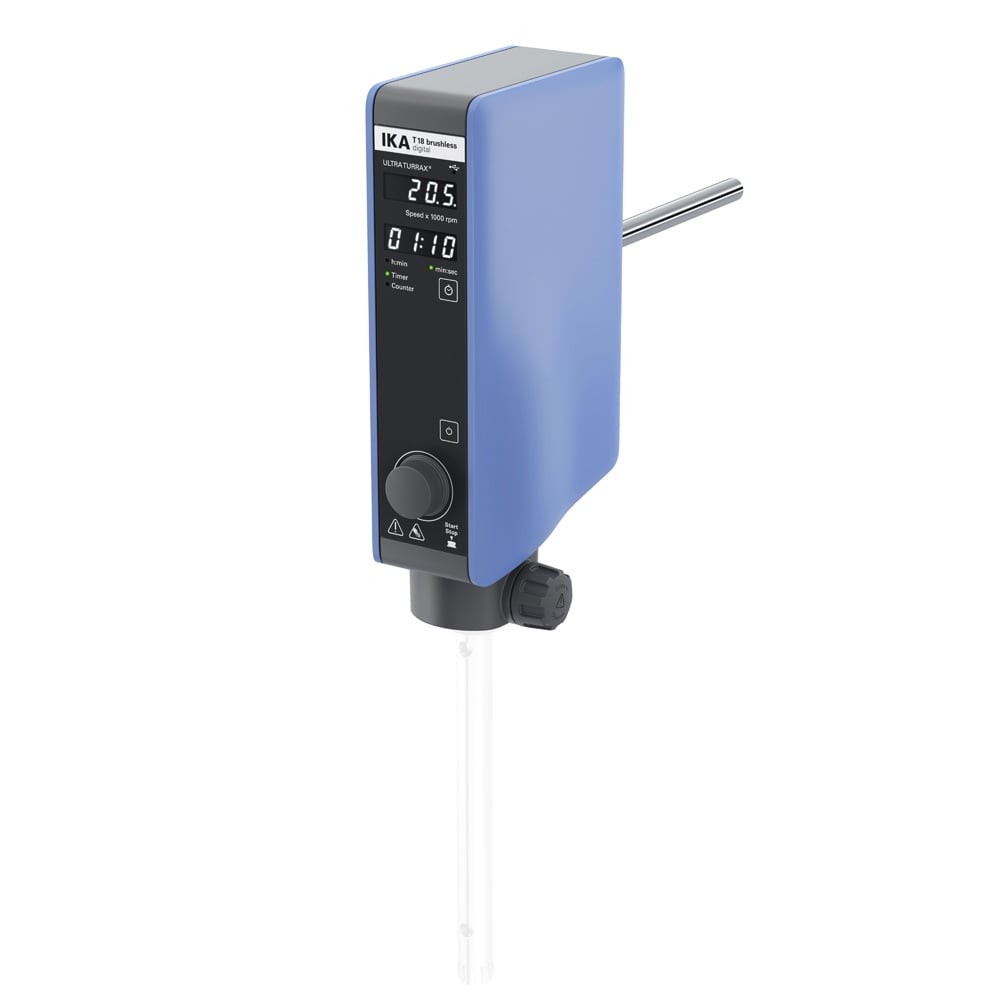

The T 18 brushless digital is an economical high performance dispersing instrument with a wide speed range of 3000 - 25 000 rpm for working volumes of up to 1.500 ml (H2O). It enables users to work at high circumferential speeds even with small rotor diameters. A broad choice of dispersing elements guarantee a wide range of applications for efficient emulsification, homogenization, dispersing and suspending and a reduction of particle sizes to the micrometer range. With the following features, this disperser meets the needs of a modern laboratory:
Brushless motor for improved motor life, quieter...
The T 18 brushless digital is an economical high performance dispersing instrument with a wide speed range of 3000 - 25 000 rpm for working volumes of up to 1.500 ml (H2O). It enables users to work at high circumferential speeds even with small rotor diameters. A broad choice of dispersing elements guarantee a wide range of applications for efficient emulsification, homogenization, dispersing and suspending and a reduction of particle sizes to the micrometer range. With the following features, this disperser meets the needs of a modern laboratory:
Brushless motor for improved motor life, quieter...
Shipping & Handling
Shipped In
Room Temperature
Safety & Storage
Storage Temperature
Ambient
Safety Statement
For laboratory research and development purposes only.
Regulatory & Compliance
Specifications
CLASS
Homogenizer/Disperser Drives
COUNTRY OF ORIGIN
Germany
*USAGE / SAFETY STATEMENT
For laboratory research and development purposes only.
WARRANTY
2+1
DIMENSIONS (W X H X D)
89 x 270 x 161 mm
SPEED DEVIATION
2 %
MOTOR RATING INPUT
400 W
PERMISSIBLE ON TIME
100 %
EXTENSION ARM LENGTH
160 mm
TIMER DISPLAY
LED
EXTENSION ARM DIAMETER
13 mm
VOLUME RANGE (H2O)
0.001 - 1.5 l
MOTOR PRINCIPLE
Brushless DC
SPEED ADJUSTMENT
stepless
MOTOR RATING OUTPUT
300 W
WEIGHT
3 kg
VOLTAGE.1
220 - 240 V
PERMISSIBLE AMBIENT TEMPERATURE
5 - 40 °C
FREQUENCY.1
50/60 Hz
SPEED RANGE.1
3000 - 25000 rpm
NOISE WITHOUT ELEMENT
70 dB(A)
PERMISSIBLE RELATIVE HUMIDITY
80 %
PROCESS TYPE
batch
TIMER
yes
VISCOSITY MAX.
5000 mPas
POWER INPUT
400 W
USB INTERFACE
yes
SPEED DISPLAY
LED
PROTECTION CLASS ACCORDING TO DIN EN 60529
IP 30
