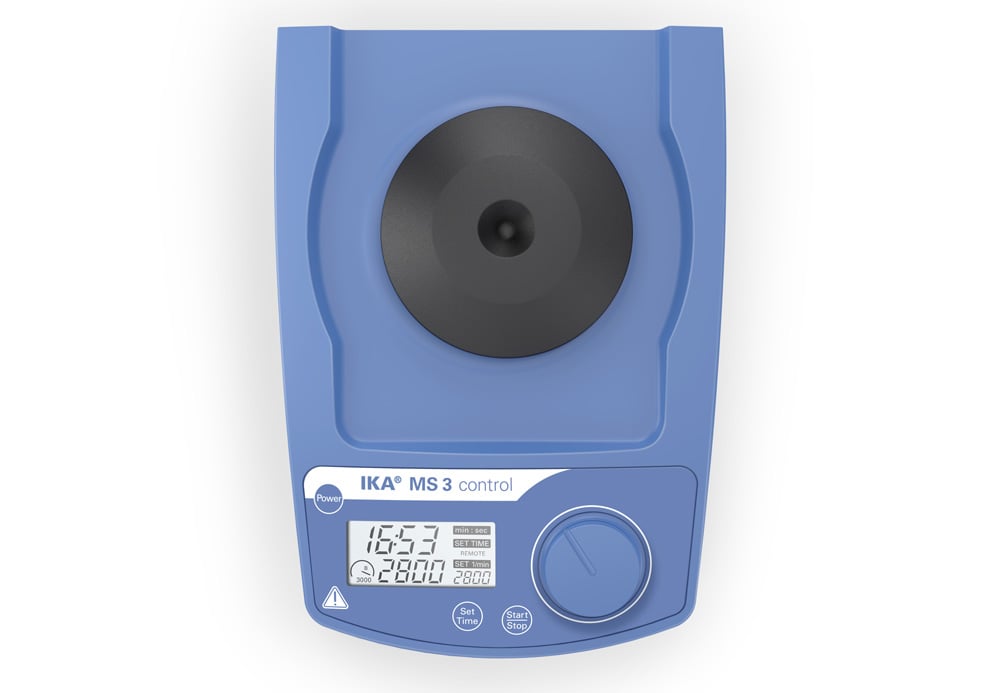

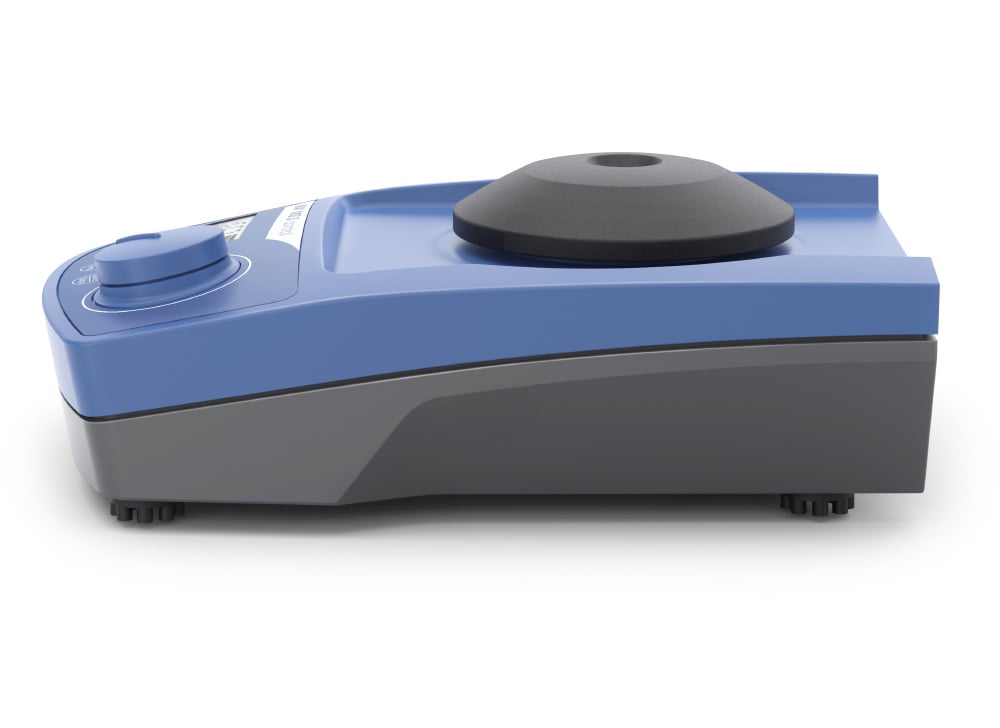

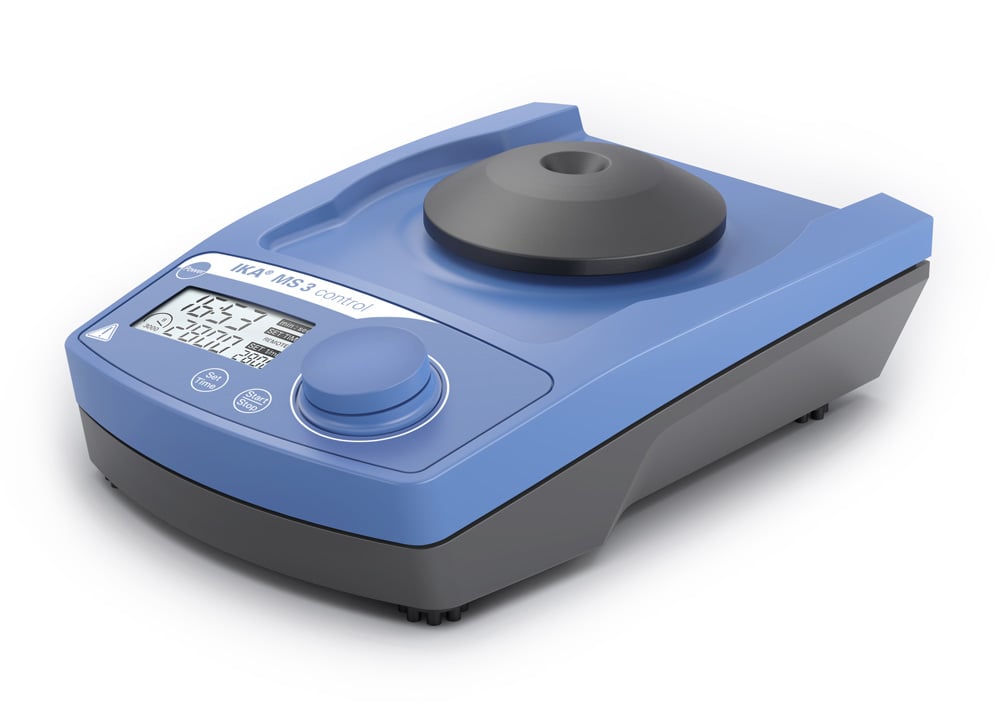

Compact, universal small shaker suitable for shaking tasks with all small vessels and microtiter plates
Wide range of attachments
Attachment detection
Timer with countdown function
Stable in all speed ranges
Sturdy zinc die cast casing
USB connection for remote control
Continuous or touch operation (with standard attachment)
Two operating modes:
Mode A (safe mode with attachment detection):
The maximum speed of 3,000 rpm is only reached with the standard attachment in touch mode. When using other attachments the speed is limited to 1,300 rpm.
Mode B (without attachment detection):
A speed of...
Compact, universal small shaker suitable for shaking tasks with all small vessels and microtiter plates
Wide range of attachments
Attachment detection
Timer with countdown function
Stable in all speed ranges
Sturdy zinc die cast casing
USB connection for remote control
Continuous or touch operation (with standard attachment)
Two operating modes:
Mode A (safe mode with attachment detection):
The maximum speed of 3,000 rpm is only reached with the standard attachment in touch mode. When using other attachments the speed is limited to 1,300 rpm.
Mode B (without attachment detection):
A speed of...
Shipping & Handling
Shipped In
Room Temperature
Safety & Storage
Storage Temperature
Ambient
Safety Statement
For laboratory research and development purposes only.
Regulatory & Compliance
Specifications
CLASS
Orbital Shakers
COUNTRY OF ORIGIN
Germany
*USAGE / SAFETY STATEMENT
For laboratory research and development purposes only.
WARRANTY
2+1
DIMENSIONS (W X H X D)
148 x 63 x 205 mm
WEIGHT
3.16 kg
PERMISSIBLE AMBIENT TEMPERATURE
5 - 40 °C
PERMISSIBLE RELATIVE HUMIDITY
80 %
TIME SETTING MIN.
1 s
TIME SETTING MAX.
3599 min
SPEED DEVIATION
1 %
SPEED MIN (ADJUSTABLE)
100 rpm
PERMISSIBLE ON TIME
100 %
TIMER DISPLAY
LCD
VOLTAGE.1
100 - 240 V
FREQUENCY.1
50/60 Hz
SPEED RANGE.1
100 - 3000 rpm
RS 232 INTERFACE
yes
TIMER
yes
MOTOR RATING INPUT
10 W
MOTOR RATING OUTPUT
8 W
DC VOLTAGE
24 V=
CURRENT CONSUMPTION
800 mA
OPERATING MODE
timer and continuous operation
PERMISSIBLE SHAKING WEIGHT (INCL. ATTACHMENT)
0.5 kg
TYPE OF MOVEMENT
orbital
SHAKING STROKE
4.5 mm
WORKING WITH MICROTITER PLATES
yes
NUMBER OF MICROTITER PLATES
1
TOUCH FUNCTION
yes
DEVIATION DEVICE CLOCK MAX.
1 %
POWER INPUT
20 W
PROTECTION CLASS ACCORDING TO DIN EN 60529
IP 21
SPEED DISPLAY
LCD
