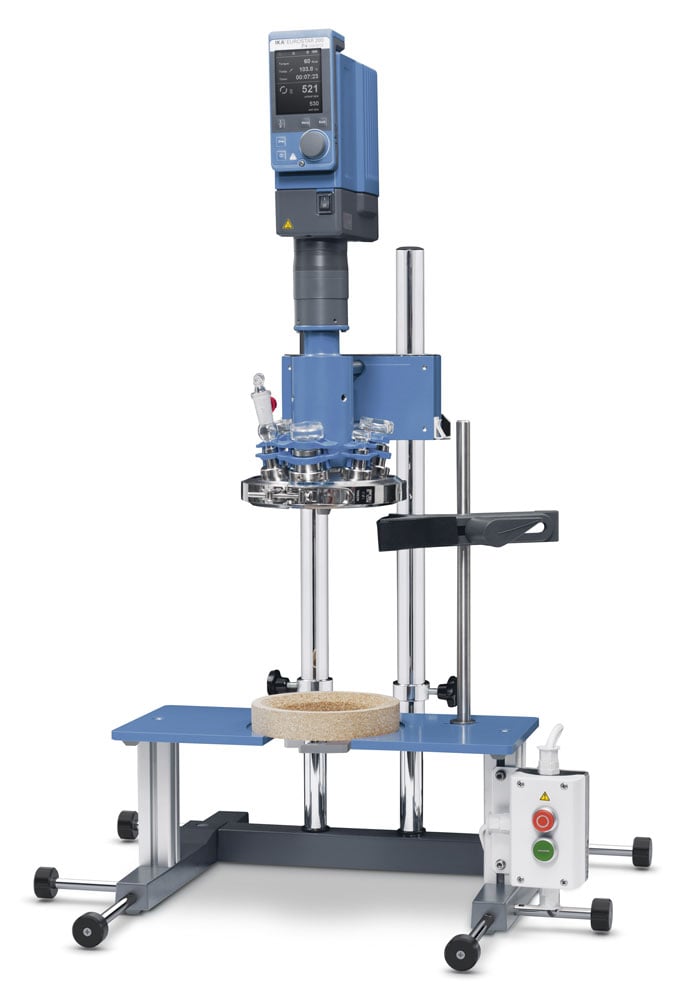

Modularly configured laboratory reactor for the optimization and reproduction of various chemical reactions, mixing and homogenization processes on a lab scale.
The system is particularly characterized by the agitator mounting, which allows for a safe transfer of the higher motor torque.
ULTRA-TURRAX® dispersers, temperature sensors, flow breakers and other accessories can be attached to the open ports of the reactor cover.
Suitable for vacuum operation
Solvent- and temperature-resistant perfluoroelastomer (FFPM) seals come into contact with sample
Infinitely variable speed
Torque trend display...
Modularly configured laboratory reactor for the optimization and reproduction of various chemical reactions, mixing and homogenization processes on a lab scale.
The system is particularly characterized by the agitator mounting, which allows for a safe transfer of the higher motor torque.
ULTRA-TURRAX® dispersers, temperature sensors, flow breakers and other accessories can be attached to the open ports of the reactor cover.
Suitable for vacuum operation
Solvent- and temperature-resistant perfluoroelastomer (FFPM) seals come into contact with sample
Infinitely variable speed
Torque trend display...
Shipping & Handling
Shipped In
Room Temperature
Safety & Storage
Storage Temperature
Ambient
Safety Statement
For laboratory research and development purposes only.
Regulatory & Compliance
Specifications
CLASS
Bioreactor Systems
COUNTRY OF ORIGIN
Germany
*USAGE / SAFETY STATEMENT
For laboratory research and development purposes only.
WARRANTY
2+1
ATTAINABLE VACUUM
25 mbar
WORKING TEMPERATURE
room temp. - 230 °C
MATERIAL IN CONTACT WITH MEDIUM
borosilicate glass, FFPM, PTFE, steel 1.4571
USEABLE VOLUME
500 - 2000 ml
DIMENSIONS (W X H X D)
460 x 1240 x 430 mm
WEIGHT
25 kg
PERMISSIBLE AMBIENT TEMPERATURE
5 - 40 °C
PERMISSIBLE RELATIVE HUMIDITY
80 %
SPEED RANGE.1
8 - 290 rpm
USEABLE VOLUME WITH DISPERSER TOOL MIN.
800 ml
REACTOR VESSEL OPENINGS (UNITS/STANDARD)
3/NS 29/32 2/NS 14/23
VISCOSITY MAX.
150000 mPas
TELESCOPE STAND STROKE
390 mm
TORQUE MAX. AT STIRRING SHAFT
660 Ncm
