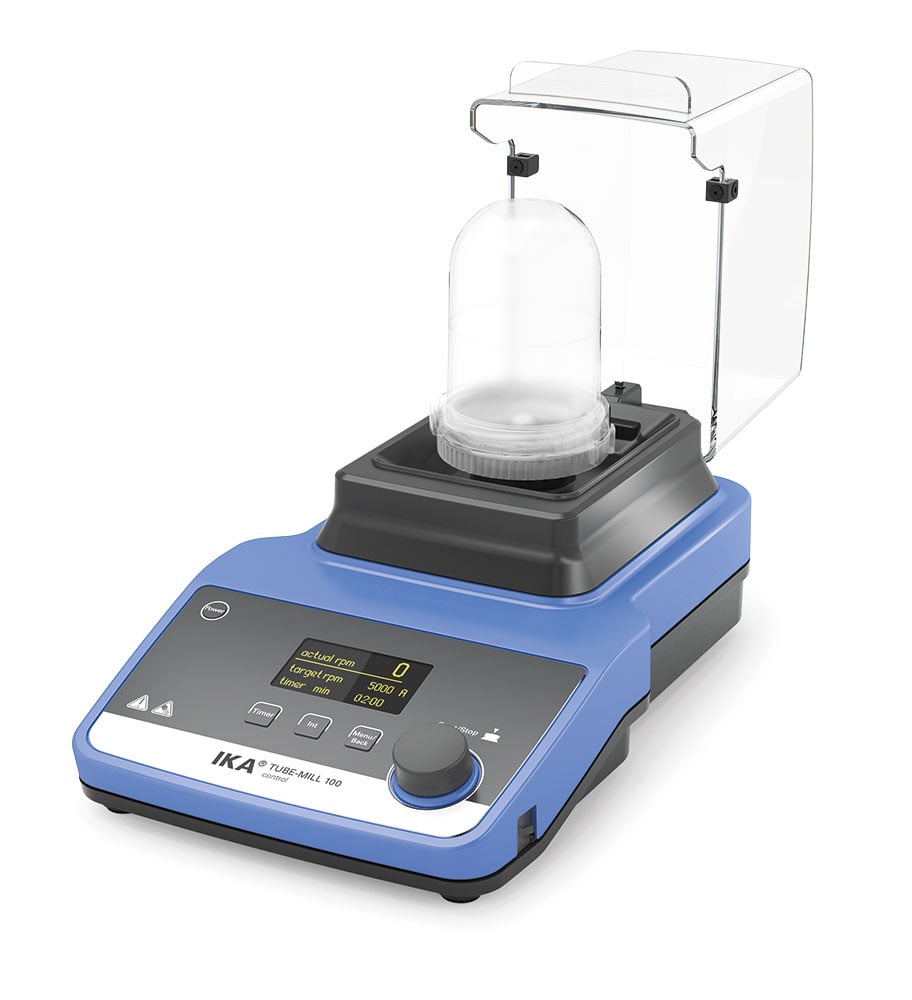

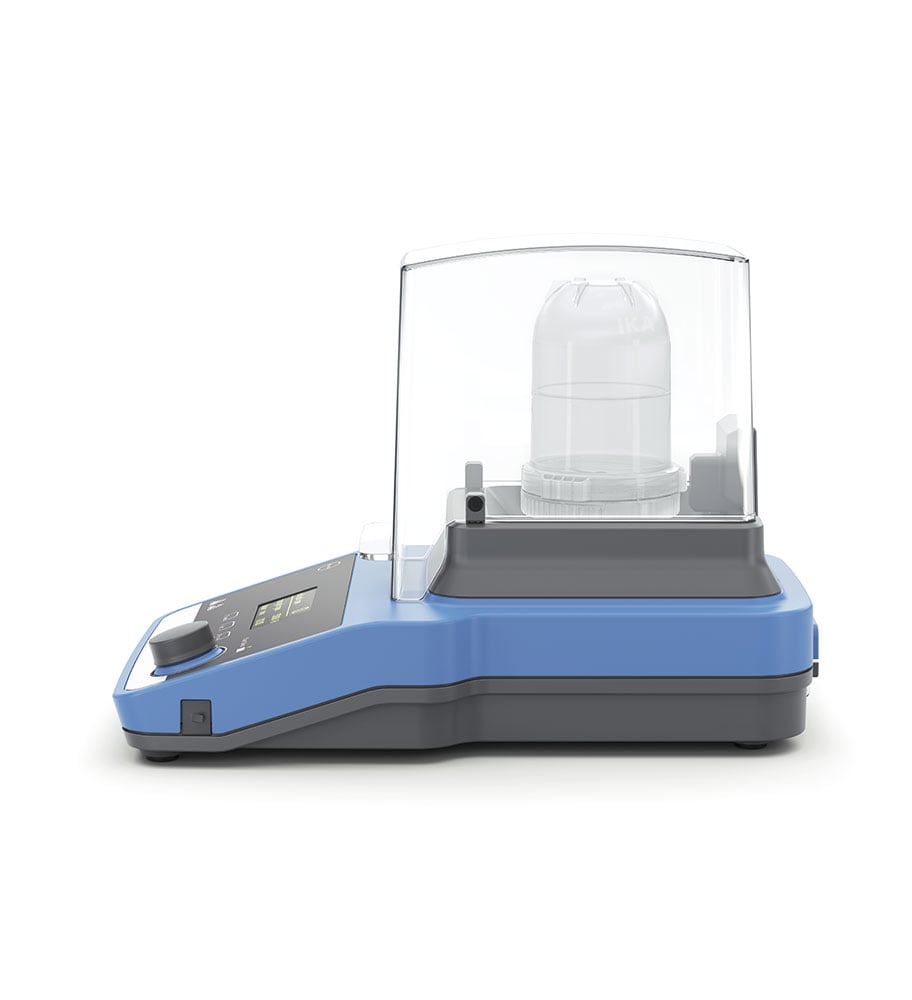

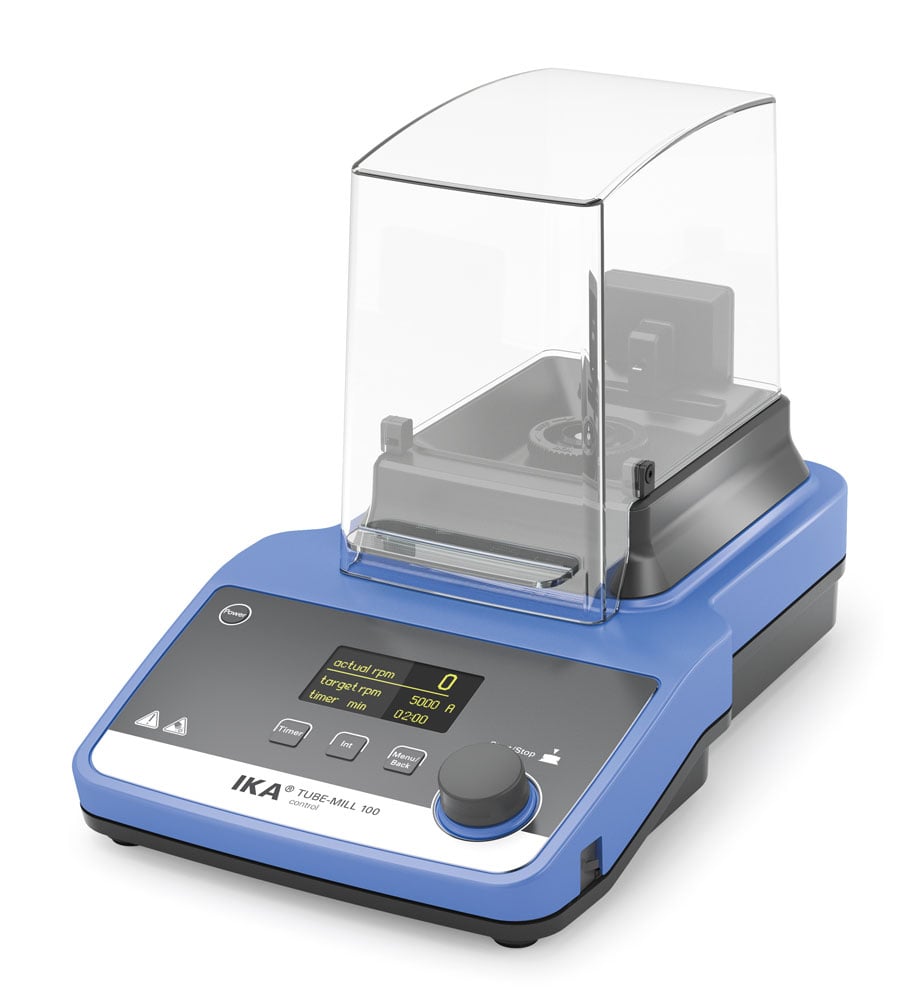

The world’s first patented Tube Mill 100 control is a batch mill with disposable grinding chambers. Eliminates possibility of cross-contamination and the effort of cleaning.
The Tube Mill 100 control accommodates larger grinding chambers with a maximum volume of 100 ml (MT 100) .
The grinding chamber and cover are made of a transparent material so grinding tests can be observed at any time. The mill can be used for hard (Mohs hardness up to 5), dry and brittle materials. It is especially suitable for grinding seeds, such as corn and wheat.
The mill will only start when the hood is closed, making...
The world’s first patented Tube Mill 100 control is a batch mill with disposable grinding chambers. Eliminates possibility of cross-contamination and the effort of cleaning.
The Tube Mill 100 control accommodates larger grinding chambers with a maximum volume of 100 ml (MT 100) .
The grinding chamber and cover are made of a transparent material so grinding tests can be observed at any time. The mill can be used for hard (Mohs hardness up to 5), dry and brittle materials. It is especially suitable for grinding seeds, such as corn and wheat.
The mill will only start when the hood is closed, making...
Shipping & Handling
Shipped In
Room Temperature
Safety & Storage
Storage Temperature
Ambient
Safety Statement
For laboratory research and development purposes only.
Regulatory & Compliance
Specifications
CLASS
Analytical Mill
COUNTRY OF ORIGIN
Germany
*USAGE / SAFETY STATEMENT
For laboratory research and development purposes only.
WARRANTY
2+1
DIMENSIONS (W X H X D)
180 x 212 x 300 mm
SPEED DEVIATION
±2 %
MOTOR RATING INPUT
100 W
CIRCUMFERENTIAL SPEED MAX.
65 m/s
FEED HARDNESS MAX.
5 Mohs
MOTOR RATING OUTPUT
80 W
MILL FEED CAN BE COOLED IN MILLING CHAMBER WITH DRY ICE
yes
WEIGHT
2.8 kg
VOLTAGE.1
220 - 240 V
PERMISSIBLE AMBIENT TEMPERATURE
5 - 40 °C
FREQUENCY.1
50/60 Hz
SPEED RANGE.1
5000 - 25000 rpm
PERMISSIBLE RELATIVE HUMIDITY
80 %
OPERATING PRINCIPLE
cutting/impact
POWER-ON TIME
3 min
FEED GRAIN SIZE MAX.
10 mm
PROCESS TYPE
batch
USEABLE VOLUME MAX.
100 ml
POWER INPUT
100 W
USB INTERFACE
yes
PROTECTION CLASS ACCORDING TO DIN EN 60529
IP 30
