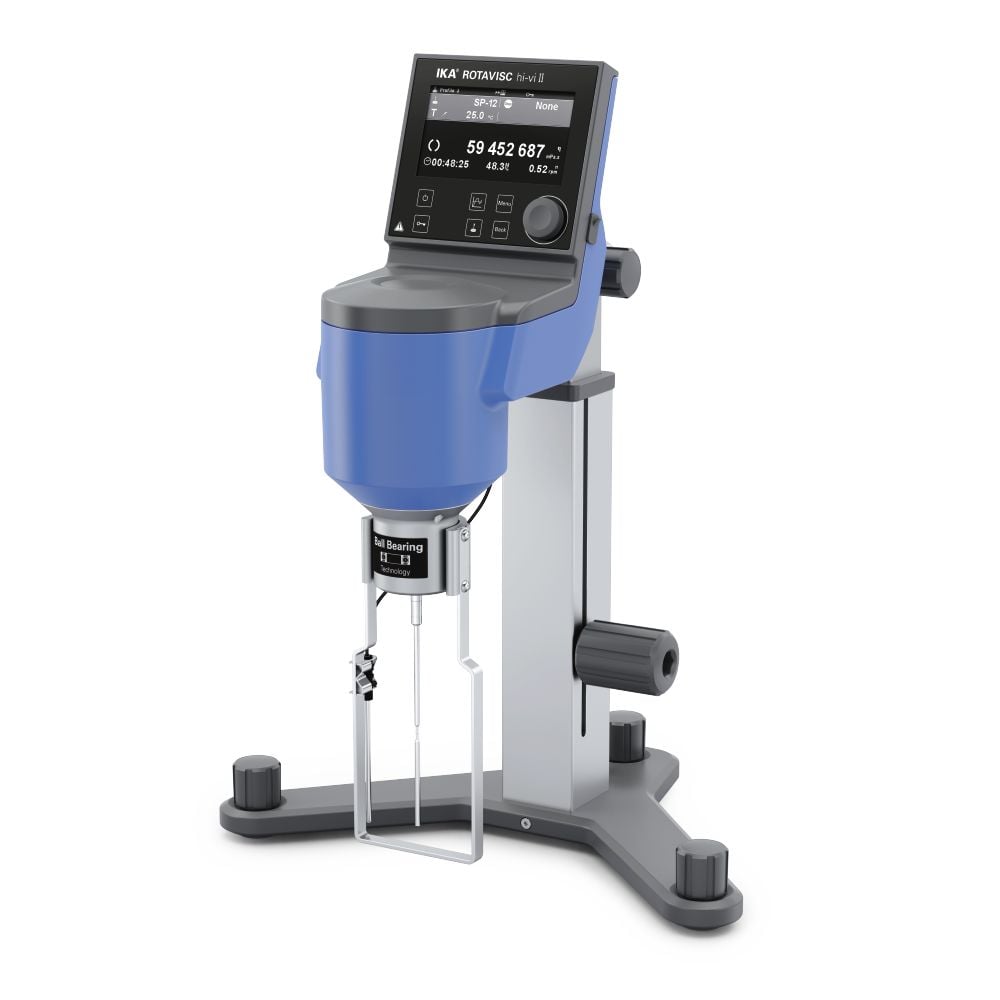

The SBS (Steel Ball Bearing, Suspended) rotational viscometers extend a large part of the application spectrum of our IKA ROTAVISC device family.
Instead of a jewel bearing, these devices are equipped with a special ball bearing technology.
They are characterized by their high robustness. Predestined for applications with very high sample throughput, frequent spindle changes, operation in harsher environments, or even frequently changeing device locations.
Whether simple or demanding viscosity measurements - with ROTAVISC you get fast and accurate results.
Easy to use
Intuitive menu navigation...
The SBS (Steel Ball Bearing, Suspended) rotational viscometers extend a large part of the application spectrum of our IKA ROTAVISC device family.
Instead of a jewel bearing, these devices are equipped with a special ball bearing technology.
They are characterized by their high robustness. Predestined for applications with very high sample throughput, frequent spindle changes, operation in harsher environments, or even frequently changeing device locations.
Whether simple or demanding viscosity measurements - with ROTAVISC you get fast and accurate results.
Easy to use
Intuitive menu navigation...
Shipping & Handling
Shipped In
Room Temperature
Safety & Storage
Storage Temperature
Ambient
Safety Statement
For laboratory research and development purposes only.
Regulatory & Compliance
Specifications
COUNTRY OF ORIGIN
Germany
*USAGE / SAFETY STATEMENT
For laboratory research and development purposes only.
WARRANTY
2+8
WORKING TEMPERATURE
-100 - 300 °C
DIMENSIONS (W X H X D)
351 x 629 x 372 mm
WEIGHT
7.1 kg
PERMISSIBLE AMBIENT TEMPERATURE
5 - 40 °C
DIAMETER.1
16 mm
PERMISSIBLE RELATIVE HUMIDITY
80 %
DIRECTION OF ROTATION
right
CONNECTION FOR EXT. TEMPERATURE SENSOR
PT 100
TIMER DISPLAY
TFT
SPEED ADJUSTMENT
TFT
WORKING TEMPERATURE DISPLAY
TFT
VOLTAGE.1
100 - 240 V
FREQUENCY.1
50/60 Hz
SPEED RANGE.1
0.01 - 200 rpm
TEMPERATURE MEASUREMENT RESOLUTION
0.1 K
RS 232 INTERFACE
yes
TORQUE DISPLAY
yes
TIMER
yes
SUPPORT ROD DIAMETER (WITH INTEGRATED FASTENING ON STAND)
16 mm
TELESCOPE STAND STROKE
200 mm
MOTOR RATING OUTPUT
4.8 W
CALIBRATION OPTION
yes
PEMITTED DENSITY
9999 kg/dm3
DC VOLTAGE
24 V=
CURRENT CONSUMPTION
1000 mA
POWER INPUT STANDBY
0.06 W
FASTENING ON STAND
extension arm
SETTING ACCURACY SPEED
±0.01 rpm
TIME SETTING RANGE
0.017 - 6000 min
PLUG-IN COUPLING (Ø)
12 mm
OPERATING MODE
timer and continuous operation
TOUCH FUNCTION
yes
VISCOSITY REPEATIBILITY (FSR)
0.2 %
VISCOSITY ACCURACY (FSR)
1 %
DYNAMIC LOAD
5 kg
OVERLOAD PROTECTION
yes
STROKE MAX.
61 mm
MEASURING SPINDLE SERIES
SP set-2
VISCOSITY MEASURING RANGE
320000000 mPas
STAND
Rotastand
GUARD RAIL
me-vi
SPRING TORQUE
5.7496 mNm
BASIC CONTAINER VOLUME
600 ml
USB INTERFACE
yes
TORQUE MEASUREMENT
yes
POWER INPUT
24 W
PROTECTION CLASS ACCORDING TO DIN EN 60529
IP 40
GRAPH FUNCTION
yes
SPEED DISPLAY
TFT
DISPLAY
TFT
