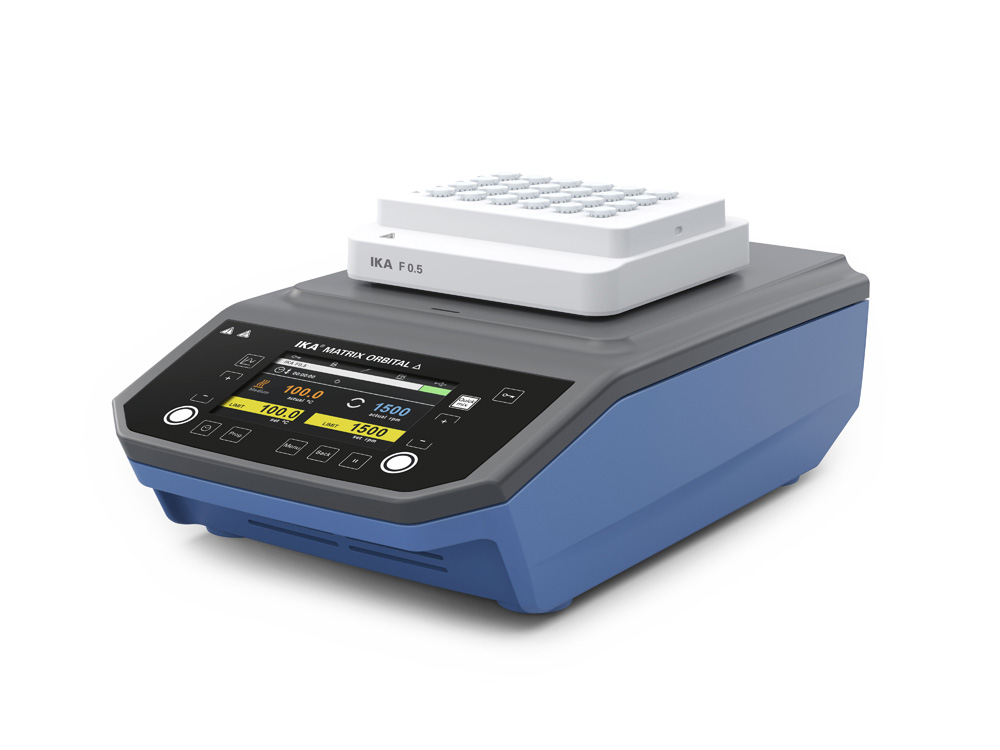

The IKA MATRIX Orbital Δ F0.5 is part of a new and powerful product family of thermoshakers available. IKA MATRIX Orbital Δ F0.5 mixes and heats with a fixed insert for 24 x 0.5 ml tubes. Whether its blood samples, pharmaceutical agents, DNA/RNA samples or ELISA assays – samples with even the smallest volumes mix reliably and completely in all laboratory applications. No cross-contamination and an optimal mixing result.
In addition, IKA MATRIX Orbital Δ F0.5 comes with numerous user-friendly features:
Large and clear display with a convenient menu structure allows for intuitive operation
Speeds...
The IKA MATRIX Orbital Δ F0.5 is part of a new and powerful product family of thermoshakers available. IKA MATRIX Orbital Δ F0.5 mixes and heats with a fixed insert for 24 x 0.5 ml tubes. Whether its blood samples, pharmaceutical agents, DNA/RNA samples or ELISA assays – samples with even the smallest volumes mix reliably and completely in all laboratory applications. No cross-contamination and an optimal mixing result.
In addition, IKA MATRIX Orbital Δ F0.5 comes with numerous user-friendly features:
Large and clear display with a convenient menu structure allows for intuitive operation
Speeds...
Shipping & Handling
Shipped In
Room Temperature
Safety & Storage
Storage Temperature
Ambient
Safety Statement
For laboratory research and development purposes only.
Regulatory & Compliance
Specifications
CLASS
Orbital Shakers
COUNTRY OF ORIGIN
Germany
*USAGE / SAFETY STATEMENT
For laboratory research and development purposes only.
WARRANTY
2+1
TEMPERATURE HOMOGENITY
±0.5 (@ 20°C ... 45°C); ±1.5 °C
NUMBER OF REACTION VESSELS
24x 0.5 ml
DIMENSIONS (W X H X D)
216 x 149 x 351 mm
SET TEMPERATURE RESOLUTION
±1 °C
TIME SETTING MIN.
1 s
SPEED DEVIATION
±30 rpm
SPEED MIN (ADJUSTABLE)
300 rpm
PERMISSIBLE ON TIME
100 %
TIMER DISPLAY
TFT
TEMPERATURE DISPLAY
yes
HEATING TEMPERATURE RANGE
room temp. +4° - 100 °C
SPEED ADJUSTMENT
10 RPM Steps
OPERATING MODE
timer, continuous and program operation
SHAKING STROKE
3 mm
WEIGHT
9.2 kg
VOLTAGE.1
100 - 240 V
PERMISSIBLE AMBIENT TEMPERATURE
5 - 40 °C
TIME SETTING MAX.
6000 min
FREQUENCY.1
50/60 Hz
SPEED RANGE.1
0 - 2000 rpm
PERMISSIBLE RELATIVE HUMIDITY
80 %
HEAT OUTPUT
100 W
RS 232 INTERFACE
yes
TYPE OF MOVEMENT
orbital
TEMPERATURE CONTROL ACCURACY
±0.5 °C
TEMPERATURE STABILITY
0.5 °C
HEAT CONTROL
TFT
TIMER
yes
FUSE
2x T4A 250V
MAXIMUN LOAD
0.3 kg
POWER INPUT
240 W
USB INTERFACE
yes
SPEED DISPLAY
TFT
HEATING RATE
15 °C/min
PROTECTION CLASS ACCORDING TO DIN EN 60529
IP 21
POWER INPUT MAX.
240 W
