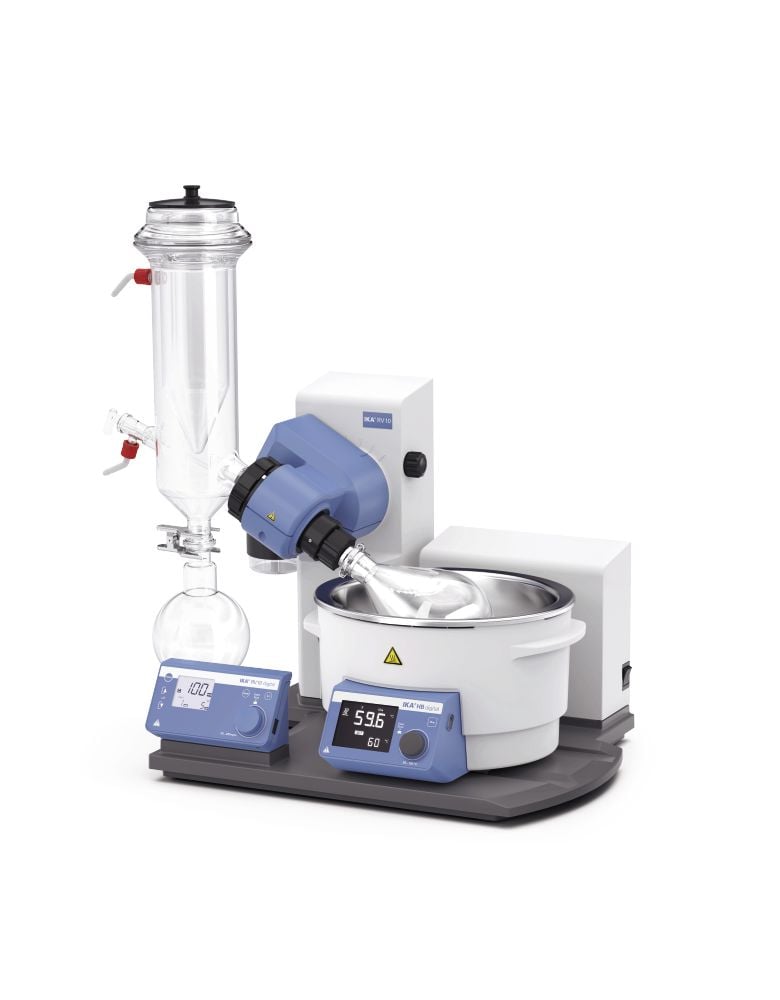

The RV 10 digital represents the continual enhancement of the IKA RV 10 Rotary Evaporator line. The unit comes with a new universal heating bath, vertical glassware, state-of-the-art safety features and digital connectivity. The RV 10 digital is a robust and reliable lab companion.
The package with dry ice condenser is particularly suitable for the distillation of low-boiling solvents.
Scope of delivery
RV 10 digital FLEX
RV 10.102 Receiving flask (KS 35/20, 500 ml)
RV 10.4 Dry Ice Condenser
The RV 10 digital represents the continual enhancement of the IKA RV 10 Rotary Evaporator line. The unit comes with a new universal heating bath, vertical glassware, state-of-the-art safety features and digital connectivity. The RV 10 digital is a robust and reliable lab companion.
The package with dry ice condenser is particularly suitable for the distillation of low-boiling solvents.
Scope of delivery
RV 10 digital FLEX
RV 10.102 Receiving flask (KS 35/20, 500 ml)
RV 10.4 Dry Ice Condenser
Shipping & Handling
Shipped In
Room Temperature
Safety & Storage
Storage Temperature
Ambient
Safety Statement
For laboratory research and development purposes only.
Regulatory & Compliance
Specifications
CLASS
Rotary Evaporators
COUNTRY OF ORIGIN
Germany
*USAGE / SAFETY STATEMENT
For laboratory research and development purposes only.
SUBCLASS
Dry Ice Condenser
WARRANTY
2+3
DIMENSIONS (W X H X D)
500 x 430 x 440 mm
WEIGHT
20 kg
PERMISSIBLE AMBIENT TEMPERATURE
5 - 40 °C
PERMISSIBLE RELATIVE HUMIDITY
80 %
SET TEMPERATURE RESOLUTION
±1 K
VOLTAGE.1
115 V
TYPE OF COOLING
Dry ice condenser
FREQUENCY.1
50/60 Hz
SPEED RANGE.1
5 - 280 rpm
HEAT OUTPUT
1300 W
RS 232 INTERFACE
yes
TIMER
yes
HEATING TEMPERATURE RANGE
room temp. - 180 °C
FILLING VOLUME MAX.
3 l
MOTOR PRINCIPLE
DC
LIFT
Motor
STROKE
140 mm
COOLING SURFACE
620 cm2
POWER INPUT
1400 W
PROTECTION CLASS ACCORDING TO DIN EN 60529
IP 20
REVERSIBLE DIRECTION OF ROTATION
yes
