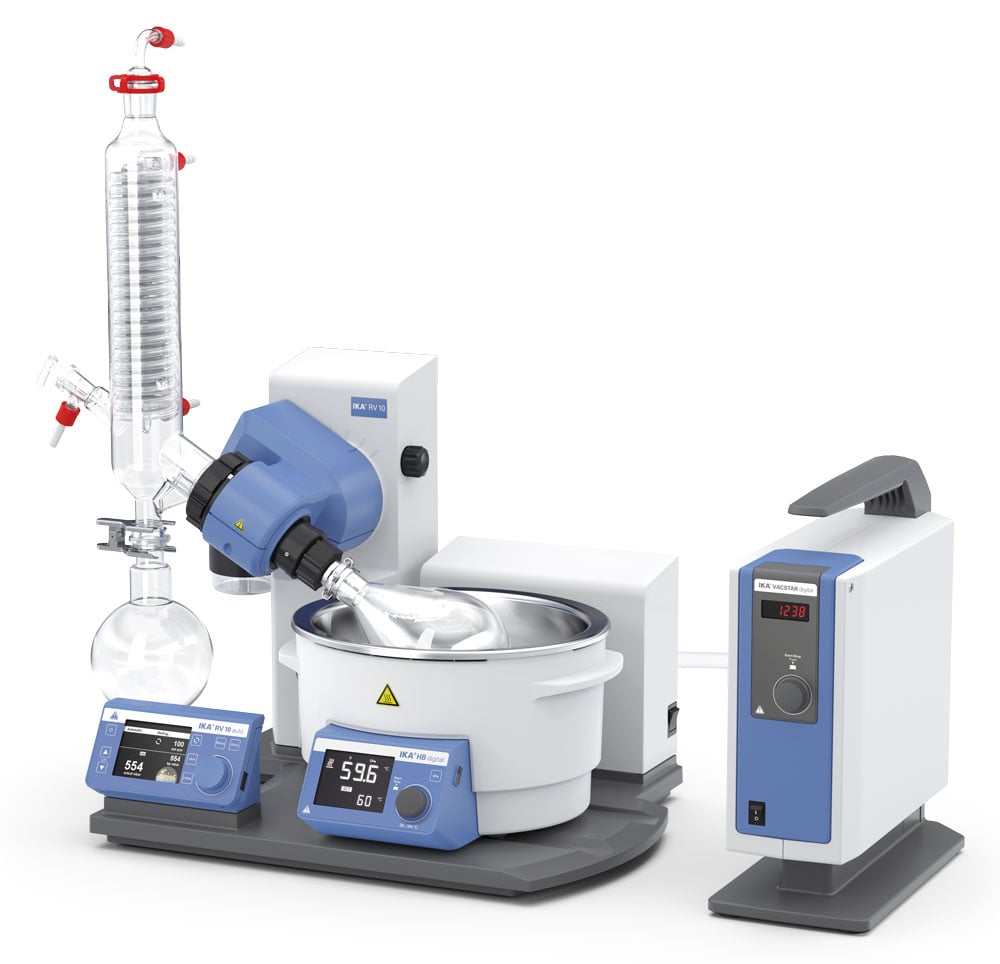

The completely revised RV 10 auto is the flagship of the IKA rotary evaporator product line. Its features include an innovative handling concept with a bright, high-contrast, TFT, color-graphic control panel, an integrated vacuum controller, cooling water monitoring and mature safety standards. The RV 10 auto offer all properties required for efficient, safe, and cost-effective operations. These include automatic control of the vacuum and cooling water volume. Its intuitive handling concept quickly leads its users to their desired results in every application. Thanks to specially designed glass...
The completely revised RV 10 auto is the flagship of the IKA rotary evaporator product line. Its features include an innovative handling concept with a bright, high-contrast, TFT, color-graphic control panel, an integrated vacuum controller, cooling water monitoring and mature safety standards. The RV 10 auto offer all properties required for efficient, safe, and cost-effective operations. These include automatic control of the vacuum and cooling water volume. Its intuitive handling concept quickly leads its users to their desired results in every application. Thanks to specially designed glass...
Shipping & Handling
Shipped In
Room Temperature
Safety & Storage
Storage Temperature
Ambient
Safety Statement
For laboratory research and development purposes only.
Regulatory & Compliance
Specifications
CLASS
Rotary Evaporators
COUNTRY OF ORIGIN
Germany
*USAGE / SAFETY STATEMENT
For laboratory research and development purposes only.
SUBCLASS
Vertical Glassware
WARRANTY
2+3
DIMENSIONS (W X H X D)
500 x 430 x 440 mm
WEIGHT
52.34 kg
PERMISSIBLE AMBIENT TEMPERATURE
5 - 40 °C
PERMISSIBLE RELATIVE HUMIDITY
80 %
SET TEMPERATURE RESOLUTION
±1 K
VOLTAGE.1
100 - 240 V
TYPE OF COOLING
Vertical condenser
FREQUENCY.1
50/60 Hz
SPEED RANGE.1
5 - 300 rpm
HEAT OUTPUT
1350 W
RS 232 INTERFACE
yes
TIMER
yes
HEATING TEMPERATURE RANGE
room temp. - 180 °C
FILLING VOLUME MAX.
4 l
POWER INPUT STANDBY
3.3 W
LIFT
Motor
SPEED TOLERANCE SET ROTATION SPEED < 100RPM
±1 rpm
STROKE
140 mm
SPEED TOLERANCE SET ROTATION SPEED > 100RPM
±1 %
VACUUM CONTROLLER INTEGRATED
yes
MEASUREMENT ACCURACY +/-
1 mbar
COOLING SURFACE
1600 cm2
VACUUM PUMP
Vacstar digital
USB INTERFACE
yes
POWER INPUT
100 W
PROTECTION CLASS ACCORDING TO DIN EN 60529
IP 20
ANALOG OUTPUT
yes
REVERSIBLE DIRECTION OF ROTATION
yes
