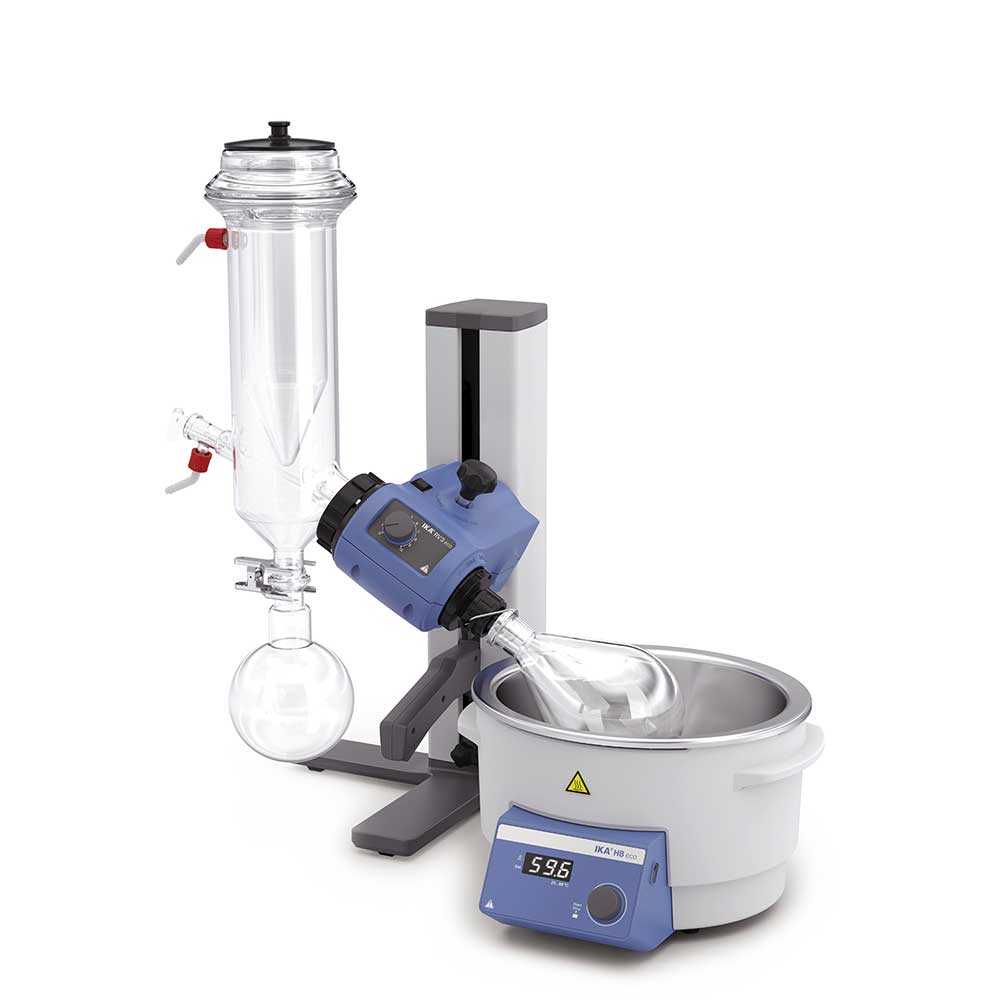

The RV 3 Rotary Evaporator is the manual basic model in the family of IKA Rotation Evaporators. It finds a multitude of uses in the chemical, pharmaceutical, and biotechnology industries, in research and development, in manufacturing and quality assurance, in laboratories, and in plant construction. Digital displays for speed and heating bath temperature enable optimum control of all distillation processes.
New: 4 liter heating bath
integrated safety lift-out function in case of power failure
water heating bath with carrying handles
locking button for fixing heating bath temperature
locking mechanism:...
The RV 3 Rotary Evaporator is the manual basic model in the family of IKA Rotation Evaporators. It finds a multitude of uses in the chemical, pharmaceutical, and biotechnology industries, in research and development, in manufacturing and quality assurance, in laboratories, and in plant construction. Digital displays for speed and heating bath temperature enable optimum control of all distillation processes.
New: 4 liter heating bath
integrated safety lift-out function in case of power failure
water heating bath with carrying handles
locking button for fixing heating bath temperature
locking mechanism:...
Specifications
CLASS
Rotary Evaporators
SUBCLASS
Dry Ice Condenser
COUNTRY OF ORIGIN
Germany
*USAGE / SAFETY STATEMENT
For laboratory research and development purposes only.
WARRANTY
2+3
COOLING SURFACE
620 cm2
DIMENSIONS (W X H X D)
440 x 530 x 330 mm
LIFT
manual
HEATING TEMPERATURE RANGE
room temp. - 99 °C
MOTOR PRINCIPLE
DC
WEIGHT
28.3 kg
VOLTAGE.1
100 - 240 V
SPEED TOLERANCE SET ROTATION SPEED < 100RPM
±1 rpm
TYPE OF COOLING
Dry ice condenser
PERMISSIBLE AMBIENT TEMPERATURE
5 - 40 °C
FREQUENCY.1
50/60 Hz
SPEED RANGE.1
20 - 300 rpm
PERMISSIBLE RELATIVE HUMIDITY
80 %
STROKE
150 mm
SPEED TOLERANCE SET ROTATION SPEED > 100RPM
±1 %
POWER INPUT
1400 W
PROTECTION CLASS ACCORDING TO DIN EN 60529
IP 20
