EUROSTAR 60 digital
IKA
SKU / CAT#: 0004446001
$2,37600
usd
$2,376.00/Unit
  1. Home
  2. Lab Equipment
  3. Stirrers & Stir Bars
  4. EUROSTAR 60 digital
0004446001

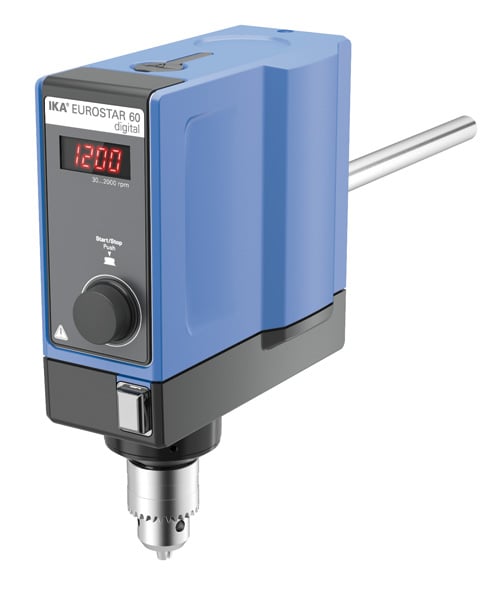

EUROSTAR 60 digital

IKA-Werke GmbH & Co. KG
Write a review
0
0citationscitations
0
0questionsquestions
0
SKU / CAT#: 0004446001
MPN: 0004446001
$2,37600
usd
$2,376.00/Unit
Badge
Badge
Available
SHIPS May 12th
Available
SHIPS May 12th
SKU
Unit size / Options
Availability
Price
No products found
Description
Universally used strong laboratory stirrer for quantities up to 40 l (H2O). It automatically adjusts the speed through microprocessor controlled technology within the speed range of 0/30 - 2000 rpm. Safety circuits installed ensures automatic cut-off in an anti-stall or overload conditions. Continuous comparison of shaft speed to desired speed is maintained and variations are adjusted automatically. This guarantees a constant speed even with changes in viscosities of the sample. Digital speed display Infinitely adjustable speed Push-through agitator shafts Overload protection Short-term overload...
Universally used strong laboratory stirrer for quantities up to 40 l (H2O). It automatically adjusts the speed through microprocessor controlled technology within the speed range of 0/30 - 2000 rpm. Safety circuits installed ensures automatic cut-off in an anti-stall or overload conditions. Continuous comparison of shaft speed to desired speed is maintained and variations are adjusted automatically. This guarantees a constant speed even with changes in viscosities of the sample. Digital speed display Infinitely adjustable speed Push-through agitator shafts Overload protection Short-term overload...
Shipping & Handling
Shipped In
Room Temperature
Safety & Storage
Storage Temperature
Ambient
Safety Statement
For laboratory research and development purposes only.
Regulatory & Compliance
Badge
Specifications
CLASS
Electronic Overhead Stirrers
COUNTRY OF ORIGIN
Germany
*USAGE / SAFETY STATEMENT
For laboratory research and development purposes only.
WARRANTY
2+1
DEVIATION OF SPEED MEASUREMENT N < 300RPM
±3 rpm
DIMENSIONS (W X H X D)
86 x 248 x 208 mm
NOMINAL TORQUE
0.6 Nm
MOTOR RATING INPUT
176 W
SPEED CONTROL
electronic
PERMISSIBLE ON TIME
100 %
EXTENSION ARM LENGTH
220 mm
EXTENSION ARM DIAMETER
16 mm
MOTOR PRINCIPLE
Brushless DC
SPEED ADJUSTMENT
stepless
OUTPUT MAX. AT STIRRING SHAFT
126 W
MOTOR RATING OUTPUT
126 W
WEIGHT
3.9 kg
VOLTAGE.1
230 V
PERMISSIBLE AMBIENT TEMPERATURE
5 - 40 °C
FREQUENCY.1
50/60 Hz
SPEED RANGE.1
0/30 - 2000 rpm
HOUSING MATERIAL
alu-cast coating / thermoplastic polymer
DEVIATION OF SPEED MEASUREMENT N > 300RPM
±1 %
PERMISSIBLE RELATIVE HUMIDITY
80 %
FASTENING ON STAND
extension arm
STIRRING QUANTITY MAX. PER STIRRING POSITION (H2O)
40 l
SETTING ACCURACY SPEED
±1 rpm
CHUCK RANGE DIAMETER
0.5 - 10 mm
STIRRING ELEMENT FASTENING
chuck
HOLLOW SHAFT, INNER DIAMETER
11 mm
VISCOSITY MAX.
50000 mPas
HOLLOW SHAFT (PUSH-THROUGH - WHEN STOPPED)
yes
POWER INPUT
176 W
SPEED DISPLAY
7 segment LED
PROTECTION CLASS ACCORDING TO DIN EN 60529
IP 42
TORQUE MAX. AT STIRRING SHAFT
60 Ncm
