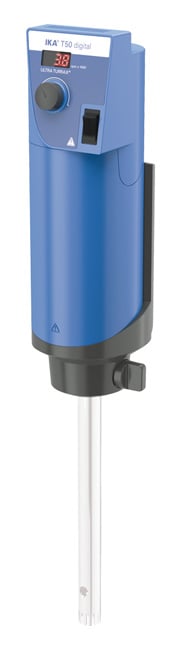

Powerful dispersing instrument for volumes from 0.25 - 30 l (H2O) with digital speed display. It offers a wide speed range from 600 – 10,000 rpm that enables users to work at high circumferential speeds even with small rotor diameters. A broad choice of dispersing elements guarantees a wide range of applications. Reproducible operations due to constant speed even with changes in viscosities.
Digital speed display
Electronic speed control
Electronic overload protection
Stainless steel dispersing elements can be cleaned quickly and easily
Smooth start
Error code display
The dispersing tool is not...
Powerful dispersing instrument for volumes from 0.25 - 30 l (H2O) with digital speed display. It offers a wide speed range from 600 – 10,000 rpm that enables users to work at high circumferential speeds even with small rotor diameters. A broad choice of dispersing elements guarantees a wide range of applications. Reproducible operations due to constant speed even with changes in viscosities.
Digital speed display
Electronic speed control
Electronic overload protection
Stainless steel dispersing elements can be cleaned quickly and easily
Smooth start
Error code display
The dispersing tool is not...
Shipping & Handling
Shipped In
Room Temperature
Safety & Storage
Storage Temperature
Ambient
Safety Statement
For laboratory research and development purposes only.
Regulatory & Compliance
Specifications
CLASS
Homogenizer/Disperser Drives
COUNTRY OF ORIGIN
Germany
*USAGE / SAFETY STATEMENT
For laboratory research and development purposes only.
WARRANTY
2+1
DIMENSIONS (W X H X D)
115 x 355 x 139 mm
SPEED DEVIATION
1 %
MOTOR RATING INPUT
1100 W
PERMISSIBLE ON TIME
100 %
EXTENSION ARM LENGTH
220 mm
EXTENSION ARM DIAMETER
16 mm
VOLUME RANGE (H2O)
0.25 - 30 l
SPEED ADJUSTMENT
stepless
MOTOR RATING OUTPUT
700 W
WEIGHT
5.85 kg
VOLTAGE.1
220 - 240 V
PERMISSIBLE AMBIENT TEMPERATURE
5 - 40 °C
FREQUENCY.1
50/60 Hz
SPEED RANGE.1
600 - 10000 rpm
NOISE WITHOUT ELEMENT
72 dB(A)
PERMISSIBLE RELATIVE HUMIDITY
80% (up to 31°C), decreasing linearly to max. 50 (@40°C)
PROCESS TYPE
batch
VISCOSITY MAX.
5000 mPas
POWER INPUT
1100 W
SPEED DISPLAY
LED
PROTECTION CLASS ACCORDING TO DIN EN 60529
IP 20
