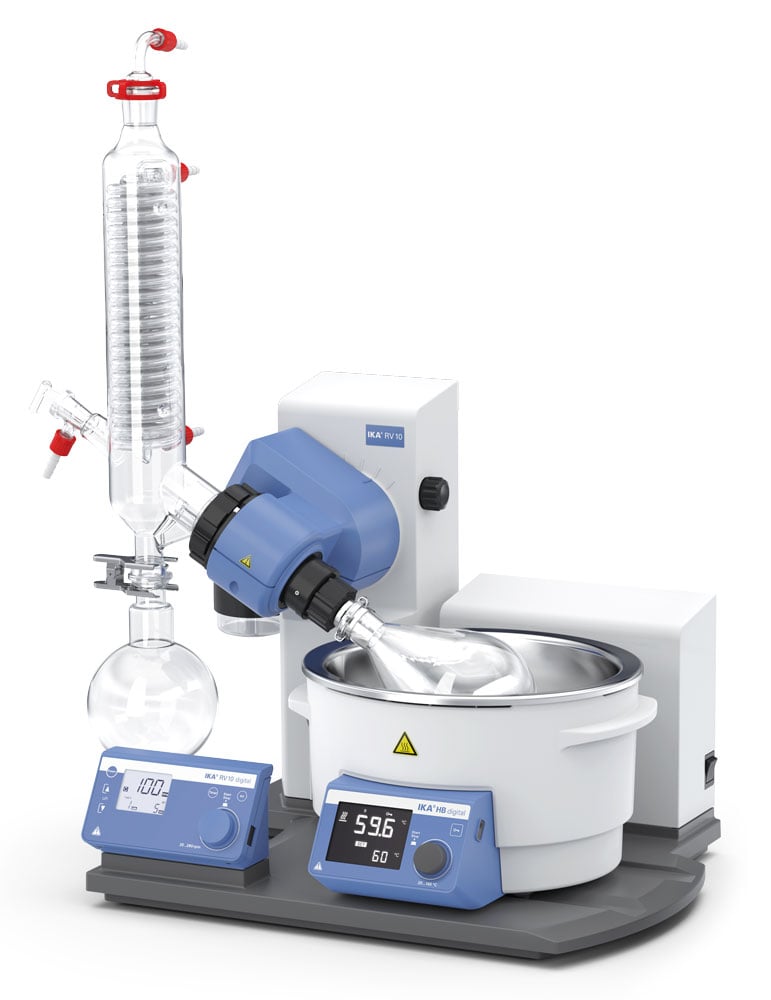

The RV 10 digital represents the continual enhancement of the IKA RV 10 rotary evaporator line. The unit comes with a new universal heating bath, vertical glassware, state-of-the-art safety features and digital connectivity. The RV 10 digital is a robust and reliable lab companion. Its optimized bath volume allows for fast heat-up times. The condenser unit has special designed glass tubes that utilize the 1600 cm² surface extremely efficient. That’s why the RV 10 digital delivers reliable and reproducible process results that are usually reserved for more costly systems. Additional features such...
The RV 10 digital represents the continual enhancement of the IKA RV 10 rotary evaporator line. The unit comes with a new universal heating bath, vertical glassware, state-of-the-art safety features and digital connectivity. The RV 10 digital is a robust and reliable lab companion. Its optimized bath volume allows for fast heat-up times. The condenser unit has special designed glass tubes that utilize the 1600 cm² surface extremely efficient. That’s why the RV 10 digital delivers reliable and reproducible process results that are usually reserved for more costly systems. Additional features such...
Shipping & Handling
Shipped In
Room Temperature
Safety & Storage
Storage Temperature
Ambient
Safety Statement
For laboratory research and development purposes only.
Regulatory & Compliance
Specifications
CLASS
Rotary Evaporators
SUBCLASS
Vertical Glassware
COUNTRY OF ORIGIN
Germany
*USAGE / SAFETY STATEMENT
For laboratory research and development purposes only.
WARRANTY
2+3
COOLING SURFACE
1600 cm2
DIMENSIONS (W X H X D)
500 x 430 x 440 mm
SET TEMPERATURE RESOLUTION
±1 K
LIFT
Motor
REVERSIBLE DIRECTION OF ROTATION
yes
HEATING TEMPERATURE RANGE
room temp. - 180 °C
MOTOR PRINCIPLE
DC
WEIGHT
32.67 kg
VOLTAGE.1
220 - 240 V
TYPE OF COOLING
vertical
PERMISSIBLE AMBIENT TEMPERATURE
5 - 40 °C
FREQUENCY.1
50/60 Hz
SPEED RANGE.1
5 - 280 rpm
FILLING VOLUME MAX.
4 l
PERMISSIBLE RELATIVE HUMIDITY
80 %
HEAT OUTPUT
1350 W
STROKE
140 mm
RS 232 INTERFACE
yes
TIMER
yes
POWER INPUT
1400 W
PROTECTION CLASS ACCORDING TO DIN EN 60529
IP 20
